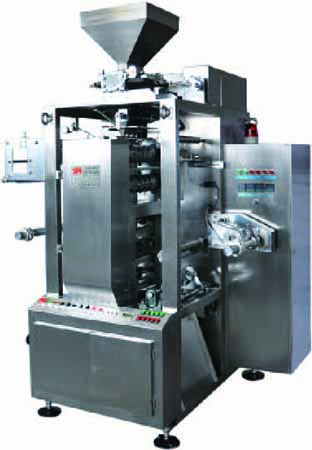

DXDK260 四邊封條袋包裝機
DXDK260 FOUR-EDGES SEALING AND LARGE NUMBER OF BAG PACKING MACHINE
特點
Features
四邊封口，同時進行多條袋包裝，包裝效率高。
PLC控制，自動化程度高。
無級變頻調速，性能可靠，操作方便。
光電跟蹤、浮動對標，保證條袋包裝雙面圖案完整，位置準確。
自動真空填充上料。
自動打批號、壓縱橫撕裂線。
Sealing four edges of bag simultaneously packing many bands of bags, having high packing speed
Controlled by PLC having high automatization.
The stepless frequency conversion variable speeds, having reliable performances, easy operation
It is equiped with photoelectric tracking device and floating alignment mark to ensure a complete
pattren and precise position on both faces of the package of the band bags.
Automatically vacuum fillng feeding .
Automatically printing serial numbers and pressing longitudinal and transverse breaking lines
使用范圍
Application
醫藥、食品、化妝品等行業對顆粒、片劑、粉劑物料的包裝。
Applicable for packing pellets tablets power materials in pharmaceutical ,food processing
and cosmetic
技術參數
Specifications
|
沖裁次數Coutting frequency
|
≤50次／分(times/min)
|
|
包裝效率Packing speed(bags/min)
|
240袋／分(bags/min)
|
|
包裝材料Packing material
|
|
塑鋁塑復合膜Compound film mack of plastic and aluminium and plastic
|
|
包裝劑量packing dose
|
顆粒1-20克／袋 Cranulation 1-20g/bag
粉劑0.2-2克／袋 Power 0.2-2g/bag
|
|
制袋長度Bag sizes(L)
|
55-105mm
|
|
制袋寬度Bag sizes(W)
|
45-80mm
|
|
電源總功率Installed power
|
4.95kW
|
|
電壓Voltage
|
380V/50Hz
|
外形尺寸（長×寬×高）
Szie L×W× H(mm)
|
1540×1340×2320
|
|
重量(公斤)Weight(kg)
|
1300
|
