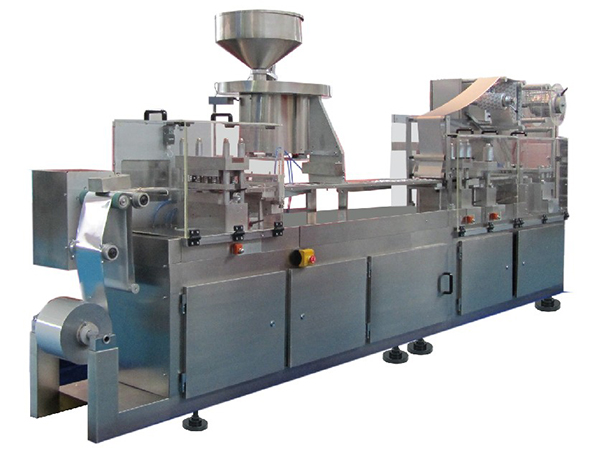

DPP200平板式泡罩包裝機
DPP200 PLATE TYPE BLISTER PACKING MACHINE
特點
Features
人機界面、PLC程序控制、變頻調整;
板式正壓吹塑成型、板式封合、板塊平整、泡罩在板塊內可隨意排放;
成型泡罩尺寸大,包裝范圍廣,可成型形狀復雜的泡罩:
可適用鋁一鋁,鋁一塑,紙一塑成型,泡罩挺括,壁厚均勻:
更換模具快捷簡單,不需作任何調整。
Human -machine interface ,PLC control, frequency conversion variable speeds;
Plate positive pressure blowing forming, plate sealing , plates unknit ,the blister
can be arranged random in the plates;
The size of blister is big ,packing range is wide ,molding shape is complex;
Apply for alumiinum,-aluminium,aluminium-plastics, paper, -plastics forming,
the blister is straight and the thickness is even;
Replace mould is simply and shortcut, need no adjustment.
使用范圍
Application
各種規格的膠囊、片劑、中藥丸、針劑、安瓶和醫療器械、電器元件等固態物品。
Applicable for packing different specifications of capsules,tablets,pills of traditional
Chinese medicinse,injections,AMP and medical treatment and instruments, electric
components etc of solid state.
技術參數
Specifications
最大成型深度Max forming depyth
|
30mm
|
沖裁次數Cutting frequency
|
≤50次/分( times/min)
|
包裝效率Packing speed
|
200板/分(times/min)
|
最大步進距離Max inching
|
162mm
|
包裝材料Packing material
|
PVC200×0.25mm
PTP200×0.02mm
|
耗氣量Air consumption
|
80 L/min
|
耗水量Water comsumption
|
5L/min
|
總功率Installerd Power
|
10kW
|
電壓Voltage
|
380V/50Hz
|
外形尺寸(長×寬×高)
Size(L×W×H)mm
|
5000×700×1700
|
重量(公斤)Weight(kg)
|
1800
|
